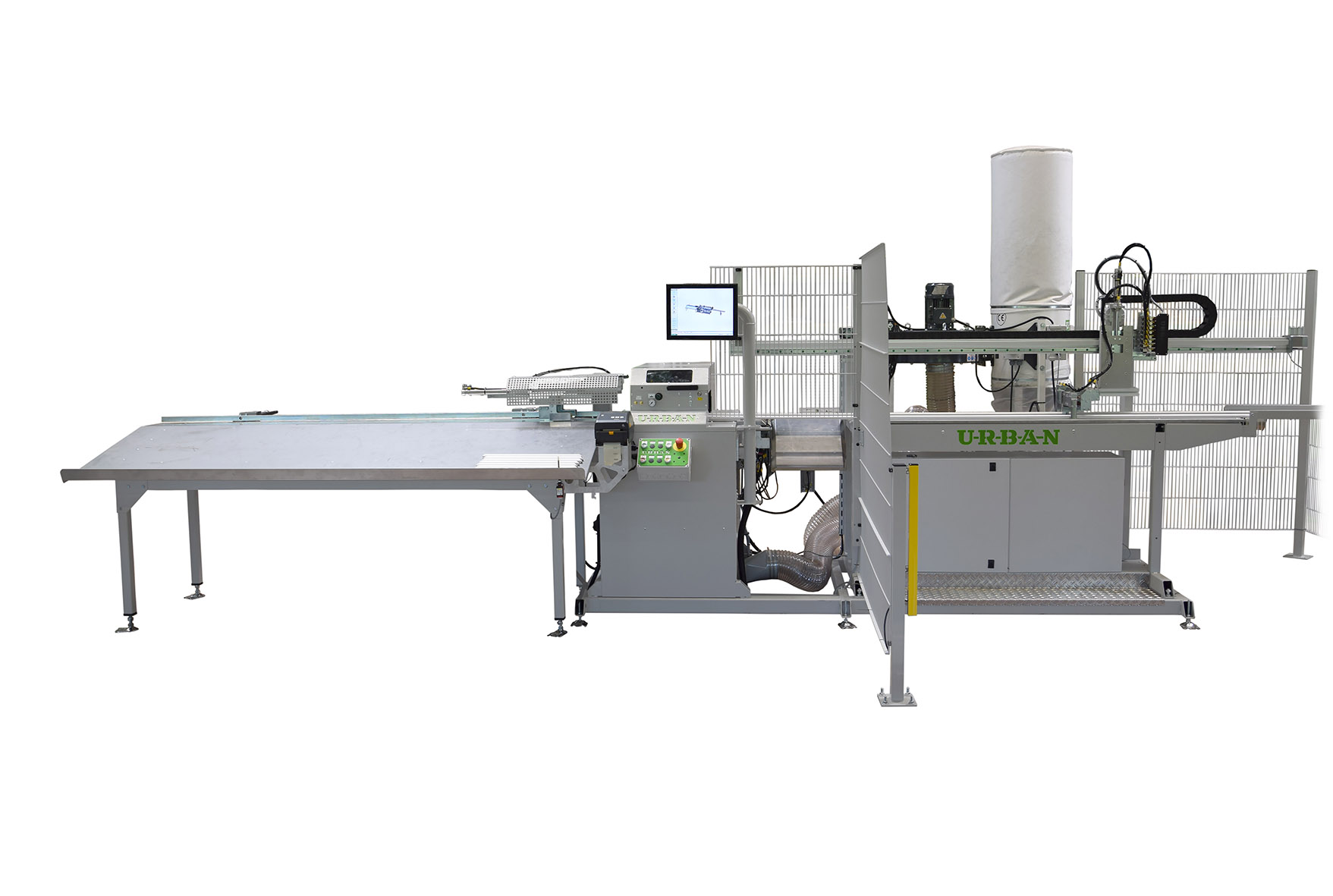

GZA 500 | Glazing bead cutting unit automatic with PC control

for the automatic cutting of glazing bead pairs

Highlights

  • PC control with user-friendly interface via touch screen
  • Simultaneous feeding of two rods or as a single rod
  • Automatic cutting of glazing bead pairs
  • Processing of cut-optimized data sets
  • Manual input also possible
  • Increased cutting speed to optimize the cutting quality
  • Only one saw blade, therefore no back cutting
  • Stepless adjustment of the glass simulation
  • Optional change of the clamping sequence
  • Automatic disposal of offcuts
  • Collection of all waste pieces and sawdust in the waste area
  • Infeed with servo-driven pusher and stainless steel table
  • No need to change feeders or gripper elements within a profile base system
  • Outfeed tongs for cycle time-neutral removal of the cut glazing beads
  • Pusher removal with stainless steel
  • Various additions or removal dimensions possible via software
  • Simple handling

Options

  • Data set-controlled adjustment of the glass simulation with servo motor
  • Real-time label printer
  • Support table for preparing the raw bars
  • Data transfer via USB, network
  • Extraction device with waste piece separator
  • Extraction unit
