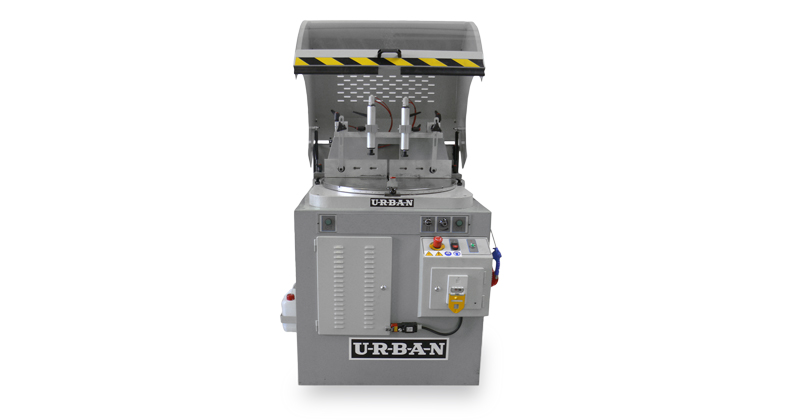

TL-500/A | Precision mitre saw  for automatic cutting ALU and PVC profiles



TL-500/A | Precision mitre saw

for automatic cutting ALU and PVC profiles

Highlights

  • Hydro-pneumatic saw feed with feed control
  • HM – saw blade 500 mm
  • Angle lockable from 45°/90°/ 45°/0°
  • Adjustable intermediate angles
  • Hard chrome plated double shaft guide for accurate cuts
  • Adjustable workpiece stop for increasing the cutting area
  • Powerful 4 KW brake motor
  • Vertical and horizontal workpiece clamping units
  • Spraying device
  • Maintenance unit and cleaning gun



Options

  • Digital angle display
  • Cutting clearance laser
  • Automatic opening / closing of protective cover

Optimally process-controlled window production live at the customers premises

Take a look at an optimally process-controlled window production live at the customer’s site.



WHAT ELSE YOU SHOULD KNOW

_______________

Easy read-out by ...

digital angle display

Suitable for ...

cutting of aluminium and PVC profiles with a large cutting area

Easy adjustment ...

Manual intermediate angle adjustment according to scale, can be clamped and locked
