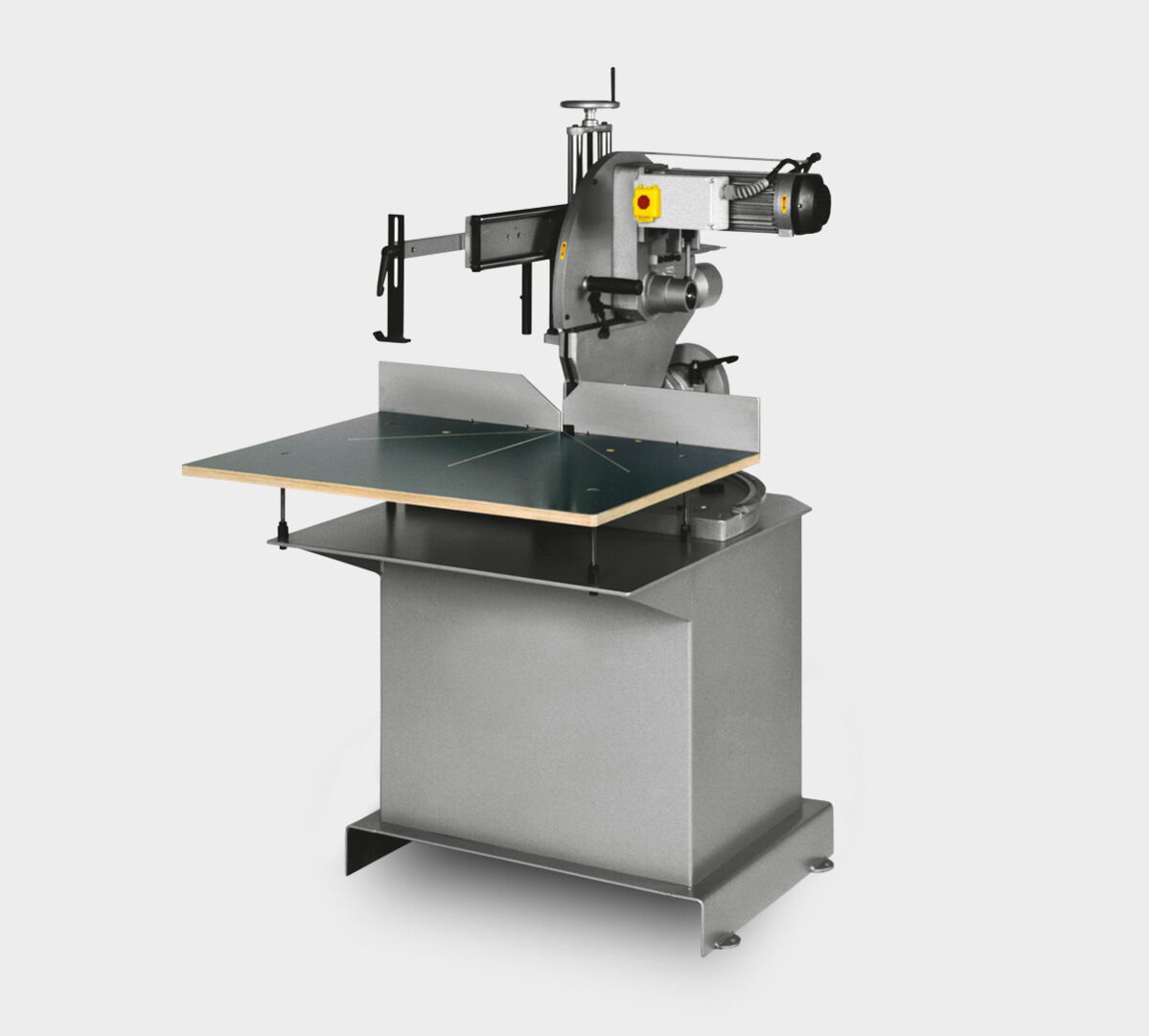

ZS 85, ZS 135, ZS 170, ZS 200 | Radial saws

crosscut and mitre saw universally usable, accurate, robust and durable

Highlights

  • Suitable for PVC, ALU and wood
  • Manual operation of the saw head
  • Saw blade diameter 350-520 mm
  • Cutting height up to 85-200 mm
  • Pivotable by 45° to the right and by 45° to the left
  • Re-adjustable fixed limit stops at 90° and 45°
  • Quick mitre setting on easy-to-read scale
  • Stable grey cast iron design
  • Sophisticated, proven technology

Options

  • Machine stand
  • Pneumatic clamping cylinders, vertical
  • Digital angle display
  • Hydraulic feed brake
  • Saw blade spraying device
  • Design N unilaterally tiltable by hand wheel

Variants

ZS 85

Saw blade diameter 300 mm – cutting height up to 85 mm

ZS 135

Saw blade diameter 350 mm – cutting height up to 135 mm

ZS 170

Saw blade diameter 420 mm – cutting height up to 170 mm

ZS 200

Saw blade diameter 520 mm – cutting height up to 200 mm
