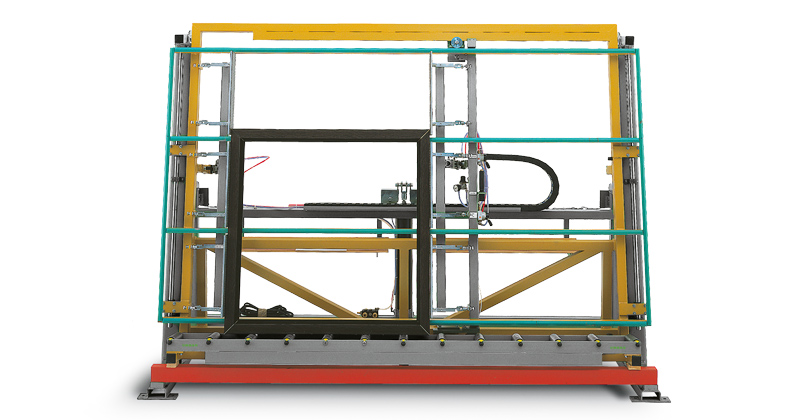

KV 1800 / KV 3200 | Checking and Glazing Unit

To fix window elements for glazing and checking work


  • Profile protecting contact surface
  • High angle accuracy through sturdy design
  • Stepless height adjustment, pneumatic, by 500mm
  • Stationary clamping bar, freely selectable for throughput direction
  • Two clamping bars with pneumatically retractable fixing bars and pneumatic brake
  • Short travel paths through operating unit on mobile clamping bar
  • Sliding bars or felt covering on contact surface, freely selectable
  • Individually adjustable clamping pressure
  • Integrable into existing production lines
  • Horizontal roller conveyor with low-wear steel rollers



  • Sealing stops
  • Mobile through additional drive unit
  • Cut-out for window drip
