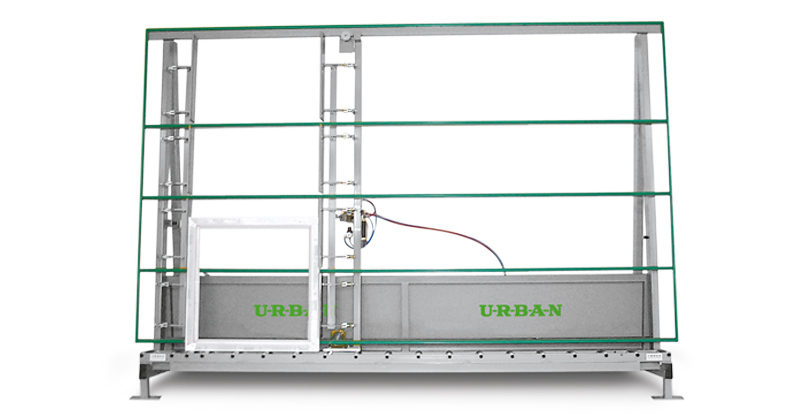

KV 2800 HF | Checking and Glazing Unit

To fix window elements for glazing and checking work


  • Profile protecting contact surface
  • High angle accuracy through sturdy design
  • Two clamping bars with pneumatically retractable fixing bars and pneumatic brake
  • Stationary clamping bar, freely selectable for throughput direction
  • Sliding bars or felt covering on contact surface, freely selectable
  • Short travel paths through operating unit on mobile clamping bar
  • Individually adjustable clamping pressure
  • Integrable into existing production lines
  • Horizontal roller conveyor with low-wear steel rollers


  • KV 2800 H - with stepless height adjustment by 500 mm
  • KV 3200 - with stepless height adjustment by 500 mm and a clamping height of 3200 mm
