Tilting table with lifting and turning device for mounting of posts, fastening rails for roller shutters, claddings, hardware assembly and gasket insert

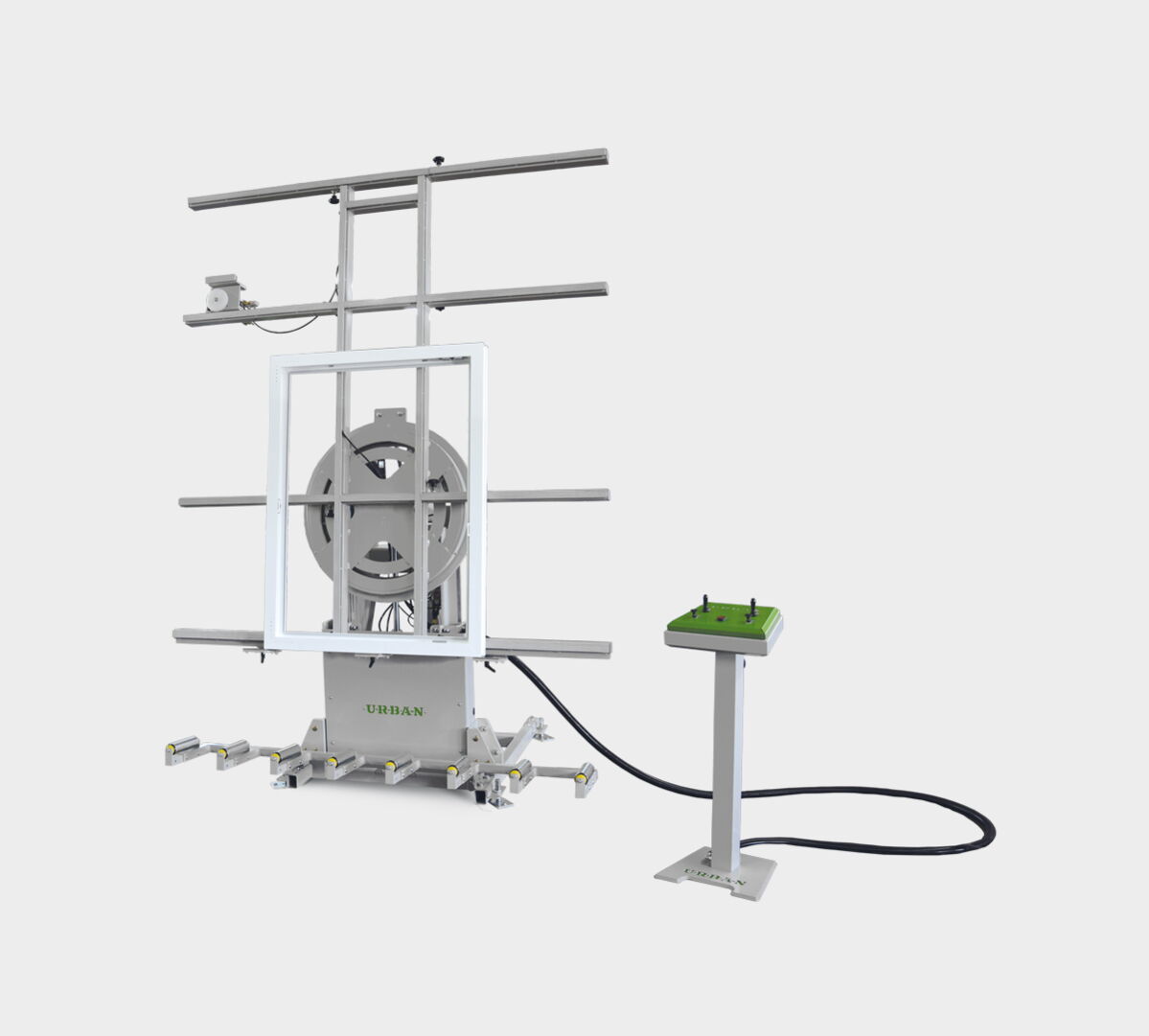

Tilting table with lifting and turning device

for mounting of posts, fastening rails for roller shutters, claddings, hardware assembly and gasket insert



Highlights

  • Horizontal lift 400 mm: From 945 mm to 1345 mm
  • Vertikal lift 400 mm: From 225 mm to 625 mm
  • Tiltable from horizontal (7 - 10°) to vertikal
  • Telescopic support surface
  • Lateral recess for better accessibilty

Options

  • Roller conveyor with angle adjustment from 7 - 10°
  • Two different roller lengths
  • Mobile version
  • Different support profiles: Silicon, felt, mushrooom (hard / soft) and brush

Tilting tables – a great support in the handling area

Learn more about swivel tables as a great support in the handling area.



Variants

AT-KDH 18-23 / 20-27

Table extendable, width max. 2300 mm and height max. 2700 mm, Turning device 360° without resetting

AT-KDH 14/19

Table width 1400 mm and table height 1900 mm
