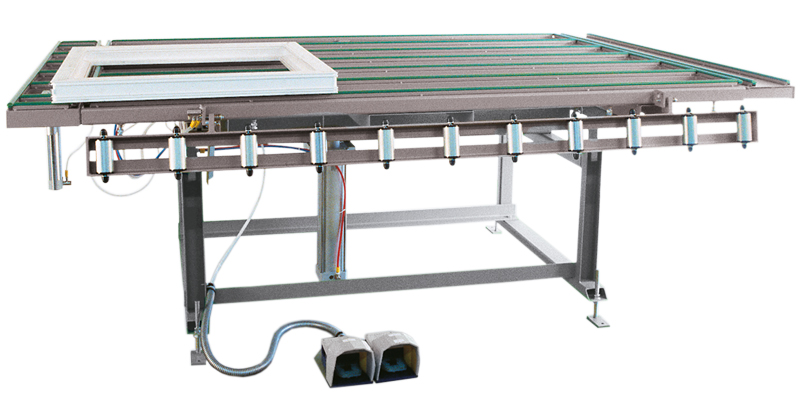

![STH 2500 Swivel Tables With And Without Height Adjustment To bring the window element into the requested working position](files/content-u-r-b-a-n/Produkte/Optimierung%20Produktionsablauf/STH%202500%20Schwenktische%20mit%20und%20ohne%20Ho%CC%88henverstellung.jpg)
STH 2500 | Swivel Tables With And Without Height Adjustment
To bring the window element into the requested working position
Highlights
- Pneumatic swivelling from 100° to 180°
- Stepless height adjustment by 500 mm
- Lateral extension, manual, of additional supports by 500 mm each
- 2 flat clamping cylinder units (SP 120), completely retractable below the support surface
- Manually folded roller conveyor with steel rollers
- Profile protecting cover
- Table height adjustable from 850 mm to 950 mm
- Integrable into production lines
- Load capacity up to 150 kgs
Options
- Cutout for window drip
- Additional flat clamping cylinder units
- Drive unit
- Selectable table support: Mushroom, felt or brush profile
