FAS 320-2F | Sash assembly station with 2 guiding rails

efficient assembly and screwing of mounts

Highlights

  • Automatic centring and clamping unit
  • Outer scanning of the sash (rebate dimension)
  • Pneumatic table inclination from 0° - 15°
  • Profile-protecting sliding or felt strips
  • Quick and accurate positioning of the screwing unit
  • Different screwing heights can be adjusted
  • Automatic screw feed
  • Electronic table control
  • Two heavy-duty guide rails for version 2F

Options

  • Handle drilling unit
  • Lock case milling unit
  • Glazing bead measuring system with wireless / barcode printer
  • Barcode laser scanner for screwing unit
  • Stainless steel support
  • Punch preparation or punch
  • Corner hinge drilling unit optionally with 2-spindle drill head
  • Assembly system for central and constant handle seat
  • Mounting shelf with 33 or 41 compartments
  • Wood design
  • Aluminium design

Sash assembling station FAS-FBA

Take a look at the Urban solutions in the video.

Switch to recordings



WHAT ELSE YOU SHOULD KNOW

____________

BS-320 Metal mount punch

with open cutting tool for straight cutting; different punches, e.g. hole punch or special punches, can also be implemented.

FE-320 Milling unit

mobile, incl. pneumatic height-adjustment with four-way turret stop at the top and at the bottom, manual depth adjustment, two-hand operation and stop for lock case milling

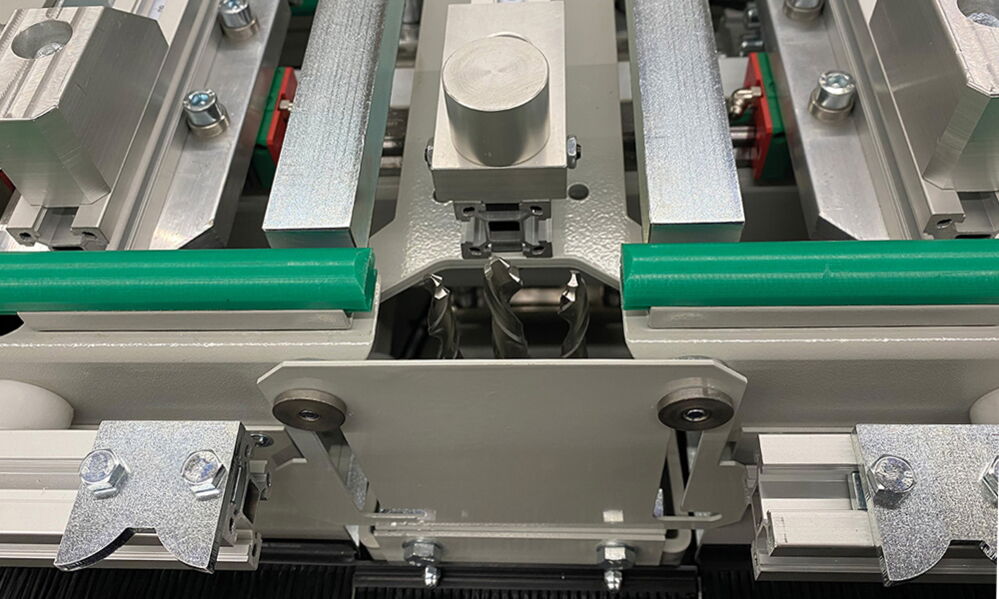

GOB-320 Handle drilling unit

stationary installation with hydro-pneumatic drill feed clamping unit and three-spindle drill head
