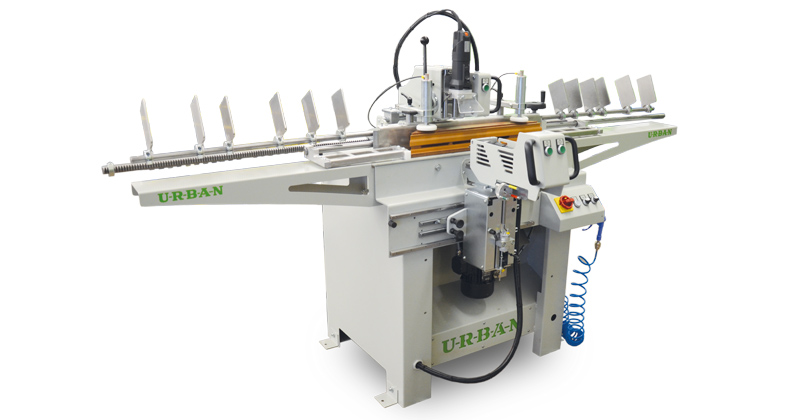

Handwheel Handle drilling machine - lock case miller GSU


GSU 100, GSU-K 100 | Handle drilling machine – lock case miller

Handle drilling lock case milling and copy milling unit


  • Drilling unit with controllable automatic hydro-pneumatic feed
  • Drilling position infinitely variable by hand wheel with mechanical digital display
  • Profile positioning for centre handle position by centring unit operated by hand wheel
  • Uniform handle seats adjustable by lateral hinged stops
  • Stable milling unit with manual feed running on two heavy-duty guides
  • Milling height is set by turret stop
  • Manual copy milling unit with tracer pin from the top
  • Universal copying template
  • Two adjustable pneumatic profile clamping units with safety pre-clamping pressure


  • High-frequency motor for lock case milling
  • Hinged stops
  • Copy milling templates
  • Handle drill / milling cutter

The world of small machines with special function

Immerse yourself in the world of small machines with special functions.


What else you should know

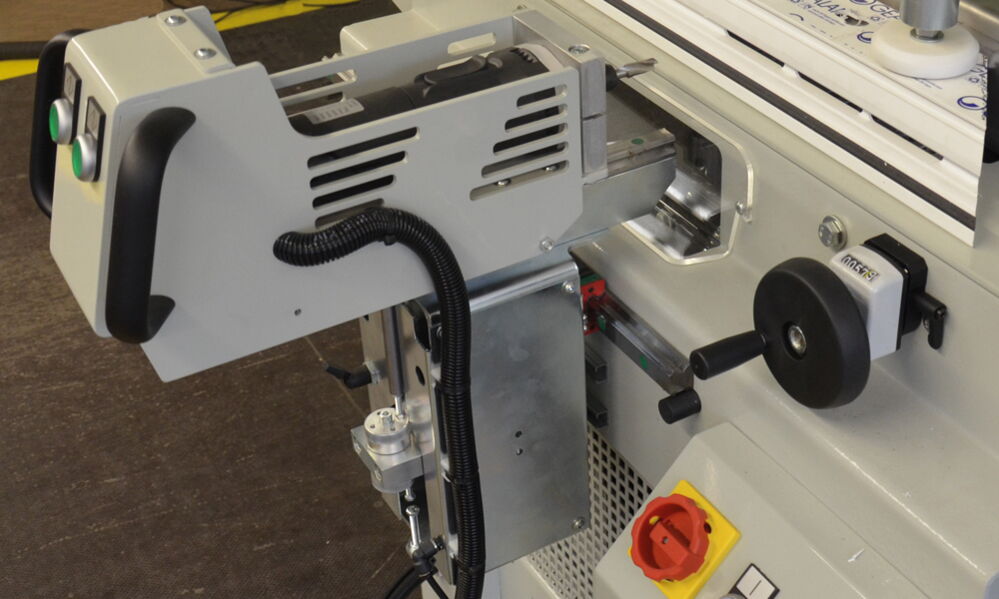

Lock case milling cutter


Adjustable drilling & milling position
adjustable by hand wheel

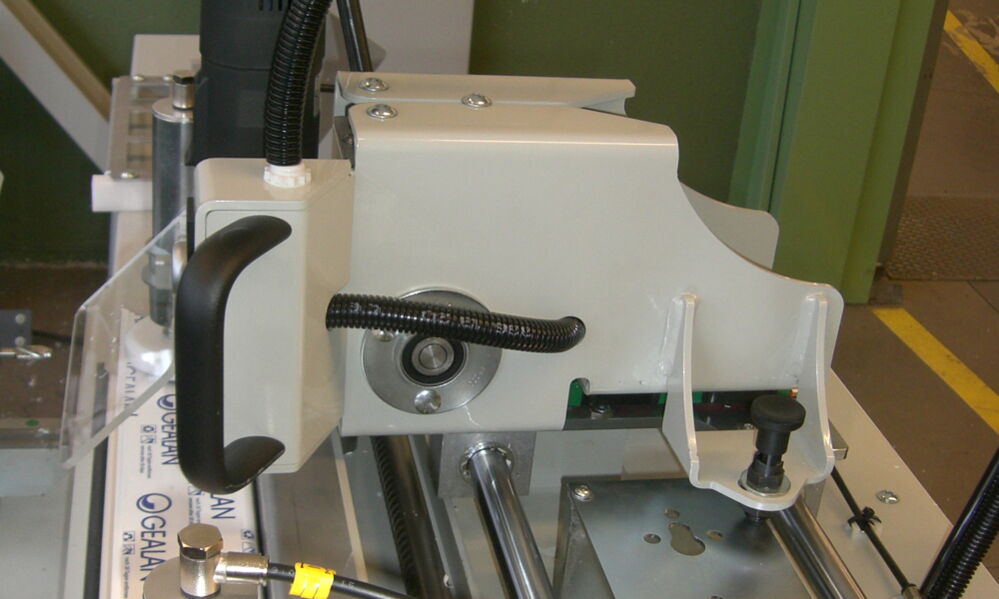

Copy milling unit
