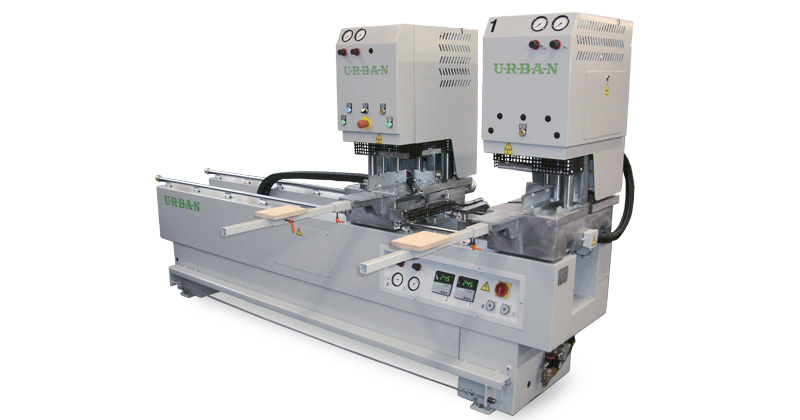

AKS 3950 Double head welding machine for standard, inclined, TWL and special production elements



AKS 3950 | Double head welding machine

for standard, inclined, TWL and special production elements

Highlights

  • Weld seam restriction 2mm or 0.2mm
  • Individual adjustment of welding parameters
  • Corner strength optimization
  • Automatic weld head positioning
  • Electronically controlled heater plate temperature
  • Profile height up to 200mm
  • Sturdy support arms

Options

  • Colour knives for foil-coated profiles
  • Machine bed extension
  • Variable stop side
  • Height adjustment of heater plate TWL
  • Gasket downholder
  • Gasket moulder
  • Butt-angle stop

What else you should know

_____________________

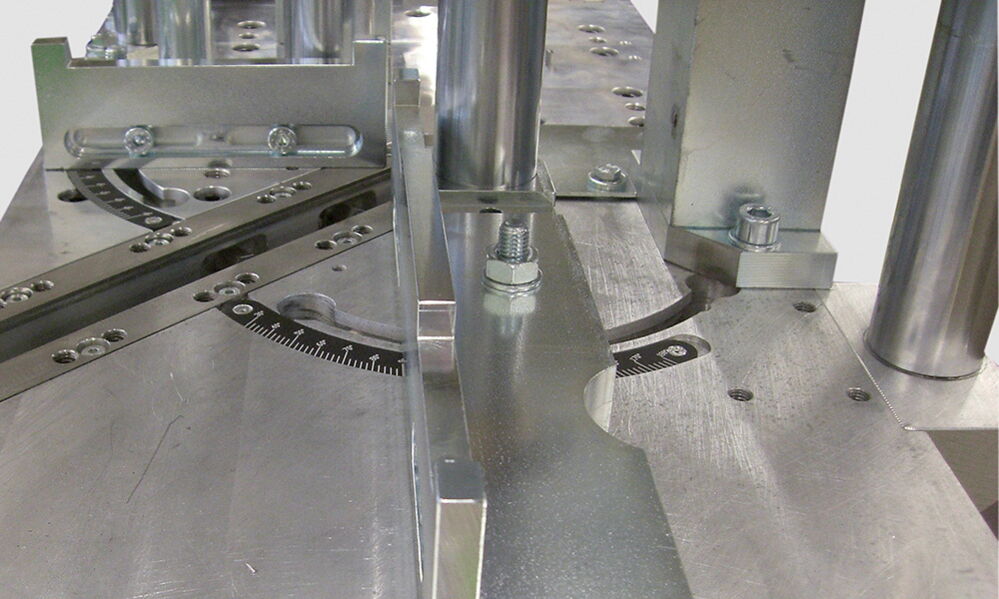

Perfect welding results

Adjustable restriction knives ensure ideal results for welding white and coloured profiles. The adjustable stop rails (adjustment range from 30° to 180°) allow butt-angle welding (depending on profile width).

Excellent Flexibility

The optionally available gasket moulder respectively downholder ensures optimal machining of profiles with gasket. On the picture you can see a gasket stamp adapted to the profile.

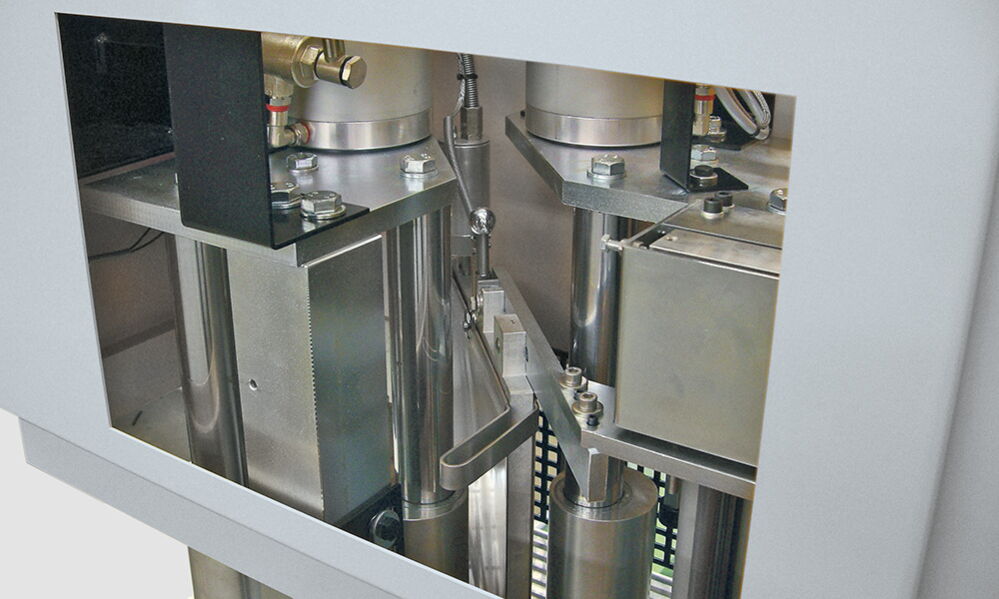

Minimum production Stop

The teflon quick change system allows you to replace the hot teflon during a minimum production stop without being in need of demounting the heating elements.
