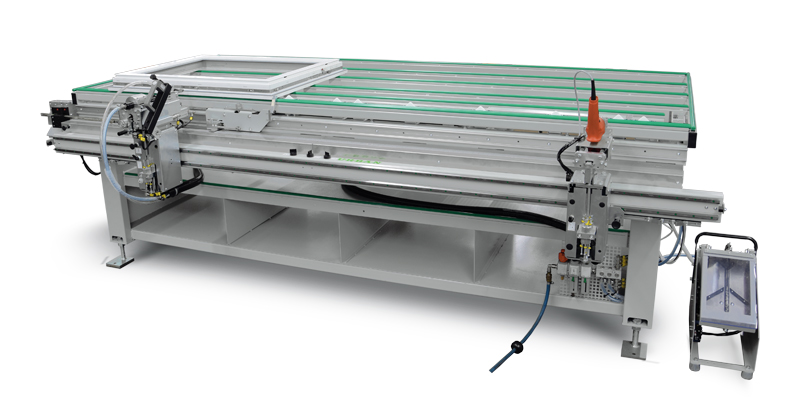

For PVC, wood, and aluminum – efficient assembly and screwing of mounts
Highlights
- Two heavy-duty guide rails
- Pneumatic table inclination from 0° – 15°
- Profile-protecting sliding or felt strips
- Spring-mounted stop pins for quick rotation and secure counterholding function
- Smooth-running and stable guide block
- Sash rebate dimension up to 2600 mm
- Fast and precise positioning of the screw unit
- Adjustable screw heights
- Automatic screw feeder
Options
- Line laser for screwdriver
- Stainless steel surface
- Punching preparation or puncher
- Corner band drilling unit, optionally with a 2-spindle drilling head
- A tuning system for a centered and consistent grip
- Shelving unit with 33 or 41 compartments
- Wooden version
- Aluminum version
What else you should know
Maximum Precision
The assembly system for central or constant handle seat can be used for quick and accurate transfer of measurements from the sash.
Streamlined Manufacture
The automatic screwing sequence with depth switch-off and external feed device ensures a streamlined and flexible production.
Precise drilling
The corner hinge drilling unitincluding quick-clamp chuck guarantees precise and fast drilling of the holes for the locating pins.
