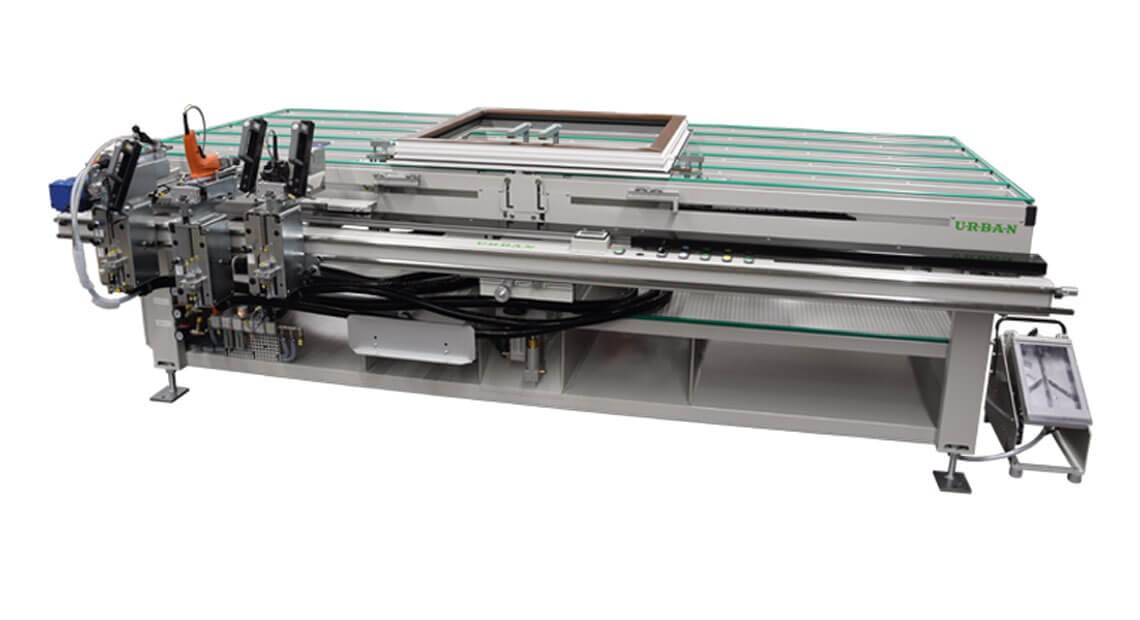

For PVC, wood, and aluminum – efficient assembly and screwing of mounts
Highlights
- Automatic centering and clamping unit
- External measurement of the sash (rebate dimension)
- Pneumatic table inclination from 0° – 15°
- Profile-protecting sliding or felt strips
- Fast and precise positioning of the screw unit
- Adjustable screw heights
- Automatic screw feeder
- Electronic Table Control
- Two heavy-duty guide rails on the 2F model
Options
- Olive pitting unit
- Lock case milling unit
- Glazing bead measuring system with wireless / barcode printer
- Line laser for screwdriver
- Stainless steel surface
- Punching preparation or puncher
- Corner band drilling unit, optionally with a 2-spindle drilling head
- A tuning system for a centered and consistent grip
- Shelving unit with 33 or 41 compartments
- Wooden version
- Aluminum version
What else you should know

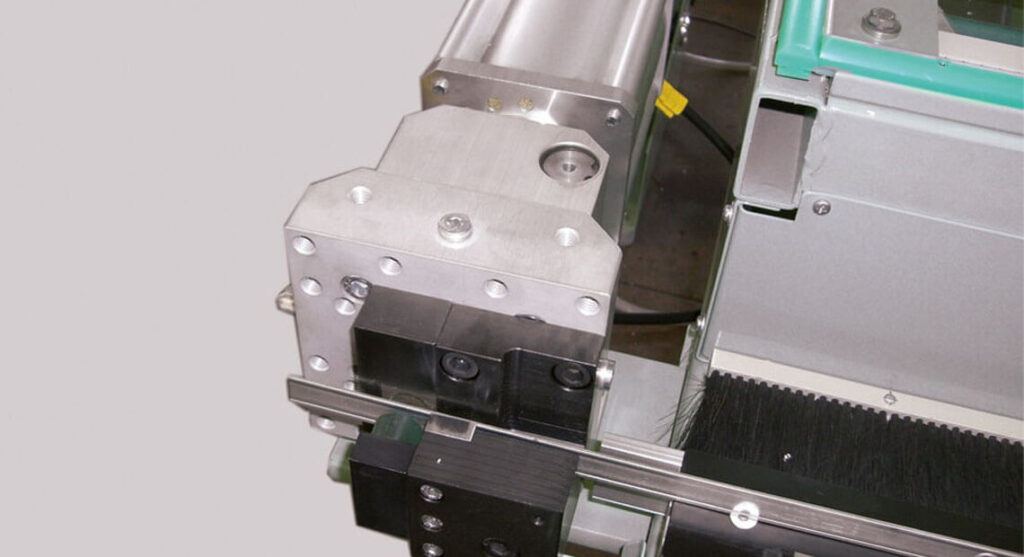

BS-320 Metal mount punch
with open cutting tool for straight cutting; different punches, e.g. hole punch or special punches, can also be implemented.

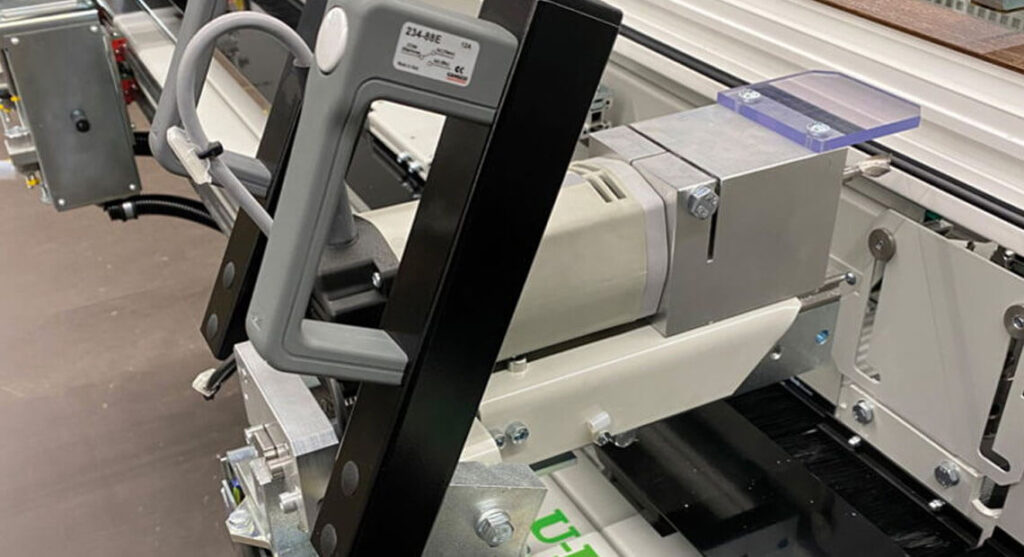

FE-320 Milling unit
mobile, incl. pneumatic height-adjustment with four-way turret stop at the top and at the bottom, manual depth adjustment, two-hand operation and stop for lock case milling
GOB-320 Handle drilling unit
stationary installation with hydro-pneumatic drill feed clamping unit and three-spindle drill head
