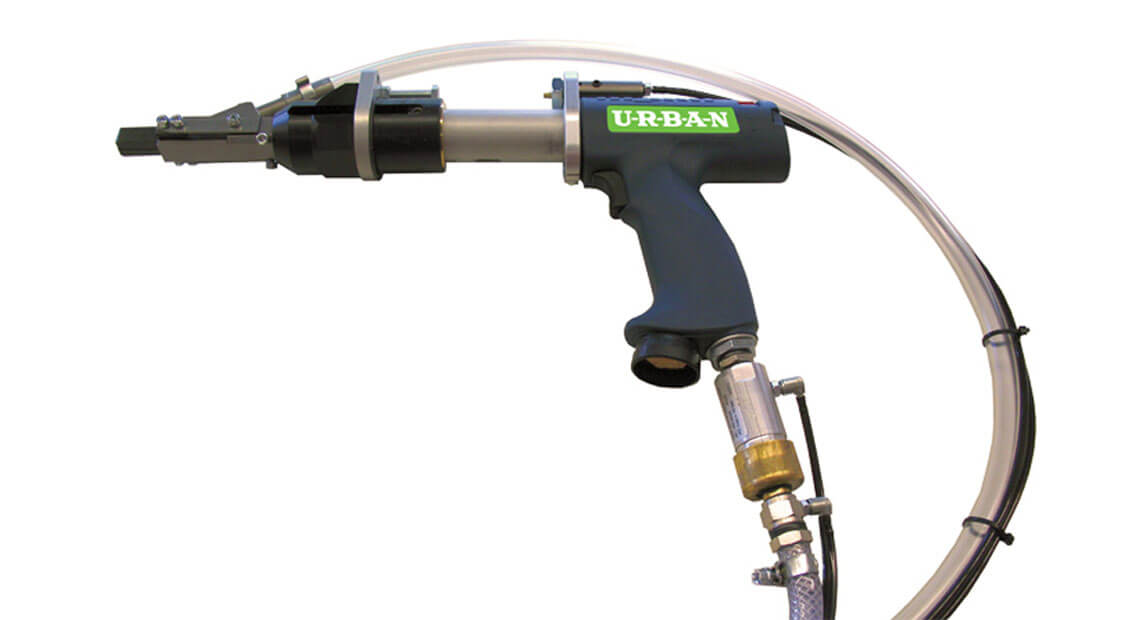

DSG | Mechanical screwdriver

Versatile use in industrial and mechanical workshops

Highlights

  • Optimally balanced weight
  • Automatic screw feed by external screw feed device

  • Adjustable torque
  • Pulse-controlled screw feed
  • For handle mounting or corner bracket screws
  • Mouthpieces can be adjusted individually
  • 3x automatic depth switch-off
  • Hose package

Options

  • Individual hose package
  • Diverse bit variants
  • Automatic depth switch-off
  • Other screwdriver variants on request

Variants

URBAN Maschinenbau - DSG 2004

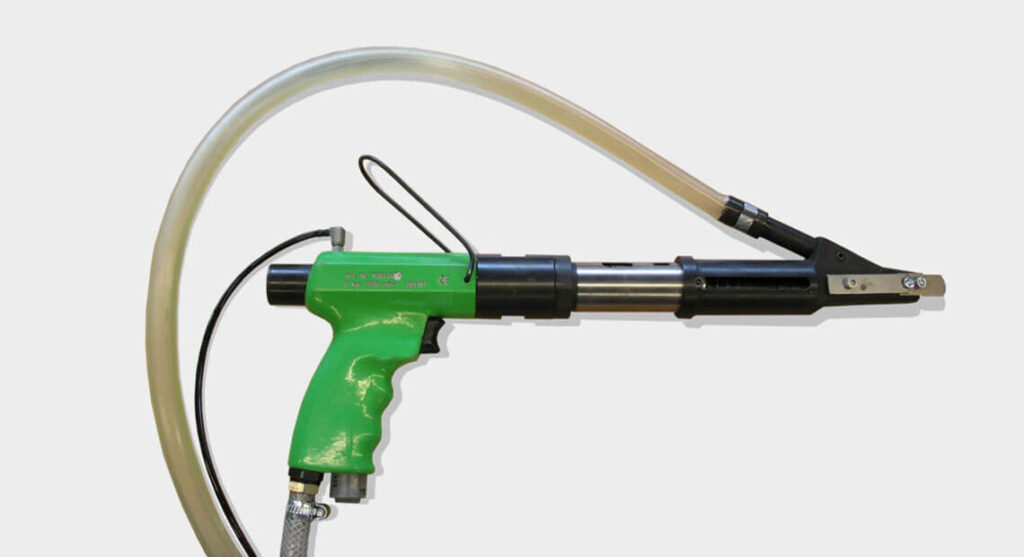

DSG 2004

Bar-type model for efficient screwdriving of screws with lengths of 12–40 mm, head diameters of 7–9 mm, shank diameters of 3.5–4.5 mm, and a torque range of 3.7–6.5 Nm

URBAN Maschinenbau - DSG 3105

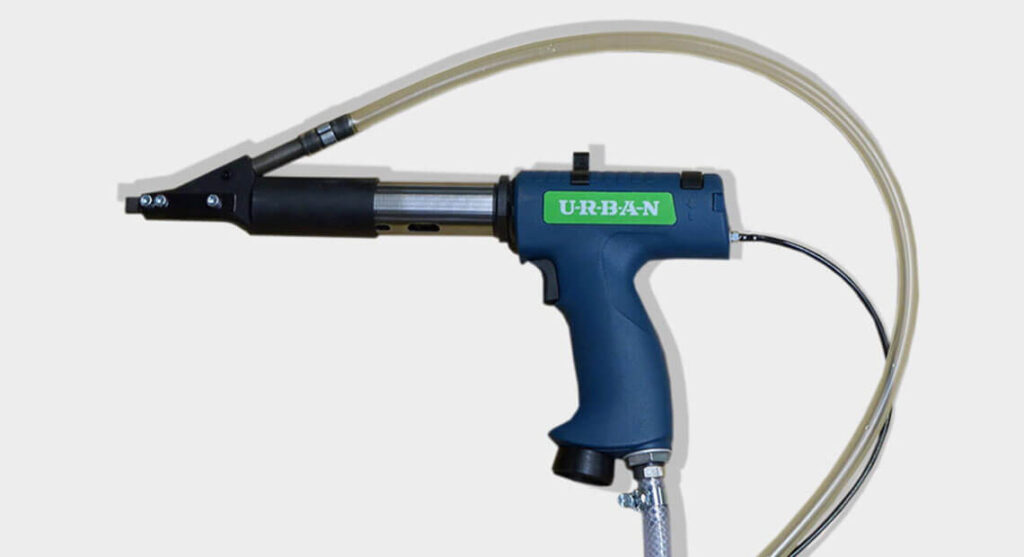

DSG 3105

Bar-style version for efficient driving of screws with lengths of 10–25 mm, head diameters of 5–7 mm, shank diameters of 2.4–3.5 mm, and a torque range of 0.5–2.0 Nm

URBAN Maschinenbau - DSG 5040 TA

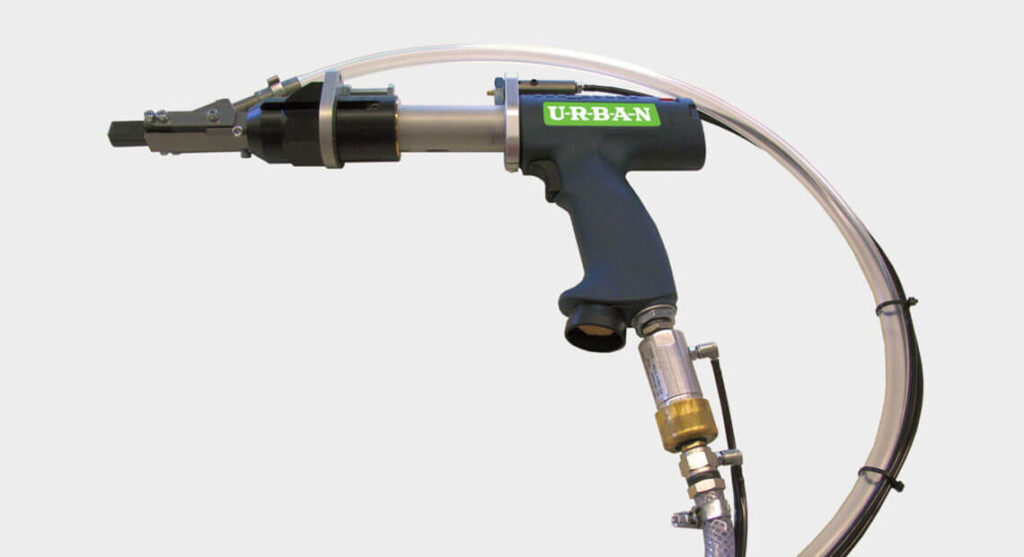

DSG 5040 TA

Bar-type model for efficient screwdriving of screws with lengths of 25–40 mm, head diameters of 6–7.5 mm, shank diameters of 3.5–4.5 mm, and a torque range of 1.2–4.5 Nm

Recording: Different screwing units

In this recording we dive deeper into the topic of screwdrivers and show the Urban solutions to this area.
To the recording
