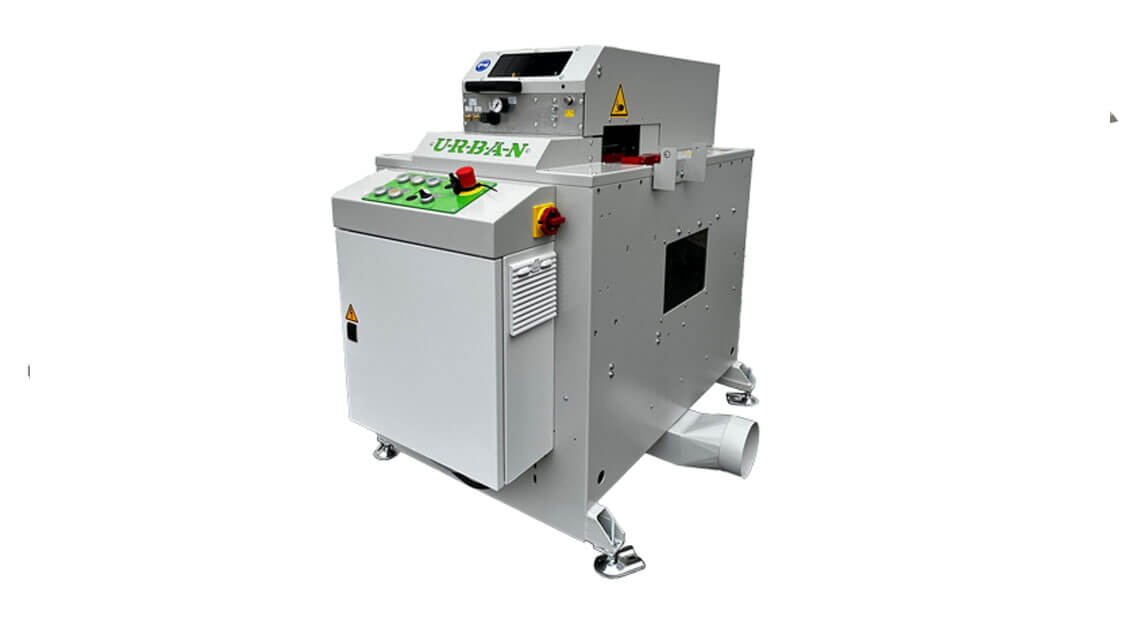

For automatic cutting of two or four PVC glazing beads at 45°
Highlights
- Automatic cutting of two (GLS 300/2) or four (GLS 300/4) glazing beads in a 45° angle cut with undercutting of the glazing bead base
- Work sequence without permanent holding of the start button
- Pneumatic saw blade feed
- Frequency converter for increasing the cutting speed and optimizing the cutting quality
- Increased throughput geometry of the profiles (larger saw blade, increased path spacing)
- Adjustable pneumatic clamping unit with selectable clamping sequence
- The saw is fitted with a large saw blade. Two small additional saw blades handle the back-cutting at the base of the glazing bead – the advantage is that, when retracting, the main saw blade no longer comes into contact with the glazing bead that has already been cut
- Waste pieces and chips are disposed of downwards in the collection tray – no extraction necessary due to the system
- No shim change within one profile system required
- Glazing simulation unit for accurate cuts without overlapping of the seals, infinitely variable using hand wheel with counter
- Easy handling
Options
- Electronic servo length stop with PC control (LAEG 2600/4)
- Glazing bead simulation automatically adjustable via servo motor (only in conjunction with LAEG 2600/4)
- Profile-dependent shims
- Profile support in 3 m or 6 m length
- Lateral extraction device
- Extraction system
- Motorized adjustment
- Eletric control
- Saw blades
- Manual measuring system
